UL Style 1569

UL Style 1569

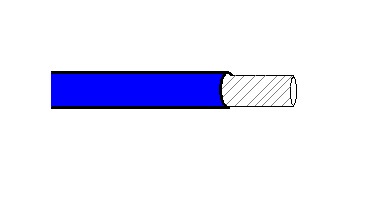

PVC Insulated Wire (Poly Vinyl Chloride)

0.016" nominal wall thickness

Max. Temperature:  105oC, Max.Voltage:  300 Volts

USE:  Internal wiring of appliances.  Tags may indicate the following:           600 V Peak - For Electronic Use Only.

 Download our data sheet

Wire Type

Dimensional Data

RDS Number

Gauge

Stranding

Insulation O.D.

Nominal Weight

UL 1569

(AWG)



(Nominal)

(lbs./1000’)





Standard Stranding

  Inches













 1569-28-7 -*

28

7/36

.045

1.40

 1569-26-7 -*

26

7/34

.048

1.80

 1569-24-7 -*

24

7/32

.057

2.70

 1569-22-7 -*

22

7/30

.065

3.80

 1569-20-10 -*

20

10/30

.072

4.90

 1569-18-16 -*

18

16/30

.080

7.20

 1569-16-26 -*

16

26/30

.094

10.80

 1569-14-41-*

14

41/30

.112

14.50

 *  =  Colors  0 = Black, 1 = Brown, 2 = Red, 3 = Orange, 4 = Yellow, 5 = Green, 6 = Blue, 7 = Violet, 8 = Grey, 9 = White
 For more information, contact us today!
 UL Style 1569 PVC Insulated Wire 105c 300 volts

For Twisted Pairs using this wire style, please click here
