UL Style 1571

UL Style 1571

 PVC Insulated Wire (Poly Vinyl Chloride)

 0.002” minimum wall thickness  0.100” maximum

 RDS Standard product:  Very Thin Wall, .004" wall

 Max. Temperature 80oC, Max.Voltage  30 Volts

 USE:  Internal wiring of Class 2 circuits in electronic equipment.

 . Download our data sheet

Wire Type



Dimensional Data

RDS Item Number

Gauge

Stranding

Insulation O.D.

Nominal Wall

DC Resistance20oC

UL 1571

(AWG)



(Nominal)



Ohms/1000ft

1571-24-07 -*

24

7/32

.032”

.004”

25.2

1571-26-07 -*

26

7/34

.027”

.004”

40.5

1571-28-07 -*

28

7/36

.023”

.004”

63.8

1571-30-07 -*

30

7/38

.020”

.004”

101

1571-32-07 -*

32

7/40

.017”

.004”

173

1571-34-01 -*

34

1/34

.014”

.004”

270

1571-36-01 -*

36

1/36

.013”

.004”

415













 *  =  Colors  0 = Black, 1 = Brown, 2 = Red, 3 = Orange, 4 = Yellow, 5 = Green, 6 = Blue, 7 = Violet, 8 = Grey, 9 = White

30 AWG, 28 AWG and 26 AWG are standard stock items.  Other AWG sizes are available as minimum runs.
Solid Conductors and heavier wall thicknesses are also available.

For more information, contact us today!

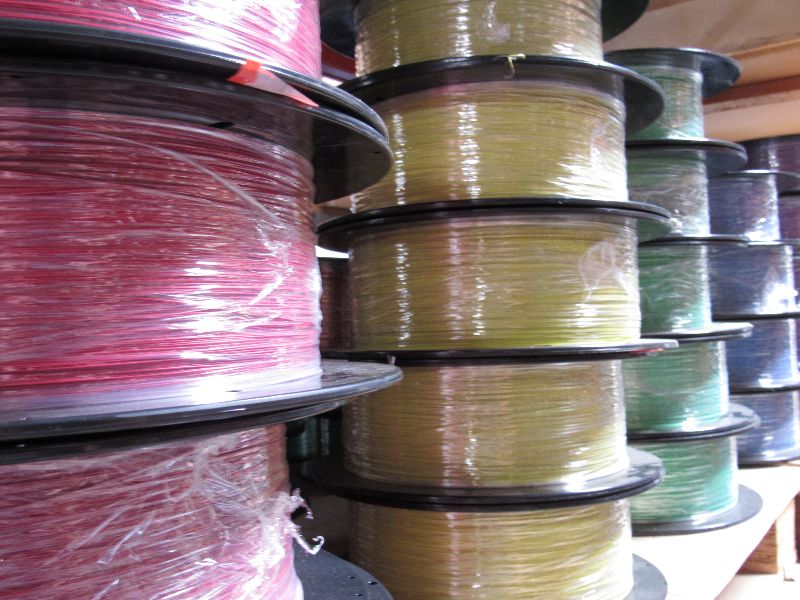

 UL Style 1571 PVC Insulated Wire 80C 30 Volts
